Implementation: Applying Geometric Transformations

References:

  1. Andy Johnson's CS 488 Course Notes, Lecture 6
  2. Foley, Van Dam, Feiner, and Hughes, "Computer Graphics - Principles and Practice", Chapter 5 ?

Changing Coordinate Systems

Last time we talked about transforms in terms of an object (polygon, line, point) in the same coordinate system of the world, that is (0,0) for the object is the same as (0,0) for the world.

An alternative (and usually preferable) way is for each object to have its own local coordinate system separate from all of the other objects and the world coordinate system. This allows each object to be created separately and then added into the world, using transformations to place the object at the appropriate point.

This is especially useful when you build larger objects out of reusable smaller objects.

For example we could have a square with 2 unit long sides and the center of the square at its origin.

The vertices of the square are: (-1,-1) ( 1,-1) ( 1, 1) (-1, 1)

This is nice because the center of the square is where we probably want the center of rotation/scaling to be. We can rotate/scale it where it is and then translate it where it belongs in the world (e.g. T(5,5) to move the center to (5,5) in world-space)

When we design the object we place the center of rotation/scaling where we wish it to be. For a wheel the center of rotation would be where the axle is to be attached, for a hinged gate the center would be at the hinge.

Each object must then be translated/rotated/scaled (from its local co-ordinate system) to place it at the proper location in the world (in the world co-ordinate system).

Say we are drawing an automobile and we want to draw the 4 tires. We can either draw each of the 4 tires independently at the appropriate location, or draw the same tire centered at its origin 4 times, and each time move it to the appropriate location in the world.

OpenGL Example: Sun and Planet

Some OpenGL code to create a solar system with a single sun and a single planet in orbit about it. We will bend the laws of physics slightly and say that the planet is orbiting about the center of the sun rather than having the objects in orbit about their shared center of mass. We also assume a circular orbit and that the plane of the solar system matches the Y=0 plane

We place the sun at 0,0,0 and it will be a sphere of radius 1
The planet has a radius of 0.2 and orbits the sun at a radius of 2
The planet rotates about its axis once per day
The planet revolves around the sun once each year

glPushMatrix(); // Copies the top matrix on the stack and pushes it.

glRotatef(yearPercentage, 0.0, 1.0, 0.0); // Rotation about the sun
glTranslatef(2.0, 0.0, 0.0); // Translate to distance away from the sun
glRotatef(dayPercentage, 0.0, 1.0, 0.0); // Rotate about own axis.
drawSphere(0.2) // user defined function to draw the planet

glPopMatrix(); // Return stack to original condition

Note:
dayPercentage is the amount the planet rotates about ITS center.
yearPercentage is the amount the planet rotates about the center of the sun.

If you think about each object having its own coordinate system then the operations on the matrix are done in the SAME order as they are called:

If you think about the single coordinate system then the operations on the matrix are done in the REVERSE order from which they are called:

if the matrix operations are not performed in reverse order then the year and day rotation percentages get reversed.

Either way of thinking about it is equivalent, and irregardless of how you think about it, that is how OpenGL function calls must be issued.

Say you have three polygonal drawing functions available to you:

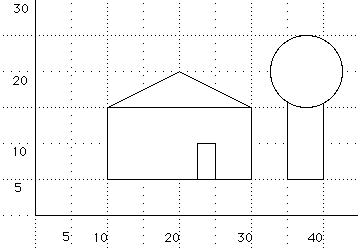

How can I draw the following scene?


Object Hierarchies

Single polygons are generally too small to be of interest ... its hard to think of a single polygon as an 'object' unless you are writing Tetris(tm).

Even in a 2D world it is more convenient to think of objects which are a collection of polygons forming a recognizable shape: a car, a house, or a laser-toting mutant monster from Nebula-9. This object can then be moved/rotated/scaled as a single entity, at least at the conceptual level.

This is especially true in a 3D world where you need more than one (planar) polygon to create a 3D object.

Creating an object polygon by polygon is very slow when you want to create a very large complex object. On the other hand it does give you much more control over the object than creating it from higher-level primitives (cube, cone, sphere)

The following two examples are from Silicon Graphics' OpenInventor(tm) a library which sits on top of OpenGL and allows higher-level objects to be created. The first shows a tree constructed from a cube and a cone. The second shows the same tree but constructed from triangular polygons.

note, triangular polygons are often used instead of 4-sided ones because the 3 vertices in the triangle are guaranteed to form a plane, while the 4 vertices of a 4-sided polygon may not all fall in the same plane which may cause problems later on.

Hierarchies are typically stored as Directed Acyclic Graphs, that is they are trees where a node can have multiple parents as long as no cycle is generated.

Hierarchies store all information necessary to draw an object:

Hierarchies are useful when you want to be able to manipulate an object on multiple levels:

An object hierarchy gives a high degree of encapsulation.

An object heierarchy allows inheritance

Hierarchies increase modularity.

Hierarchies decrease storage space

Hierarchies make it easy to propagate changes.

Hierarchies are common in 'real life' so it can be easier to model hierarchical things in a hierarchy.

How can I redraw the house and tree scene to make better use of objects?


Fonts

Text is handled in one of two ways.

bitmaps:

rectangular array of 0s and 1s

00000000
00011000
00100100
01000010
01111110
01000010
01000010
01000010

polygons:

OpenGL provides minimal font support - only bitmapped fonts. Fortunately there are free 3D fonts available such as the Hershey library.
